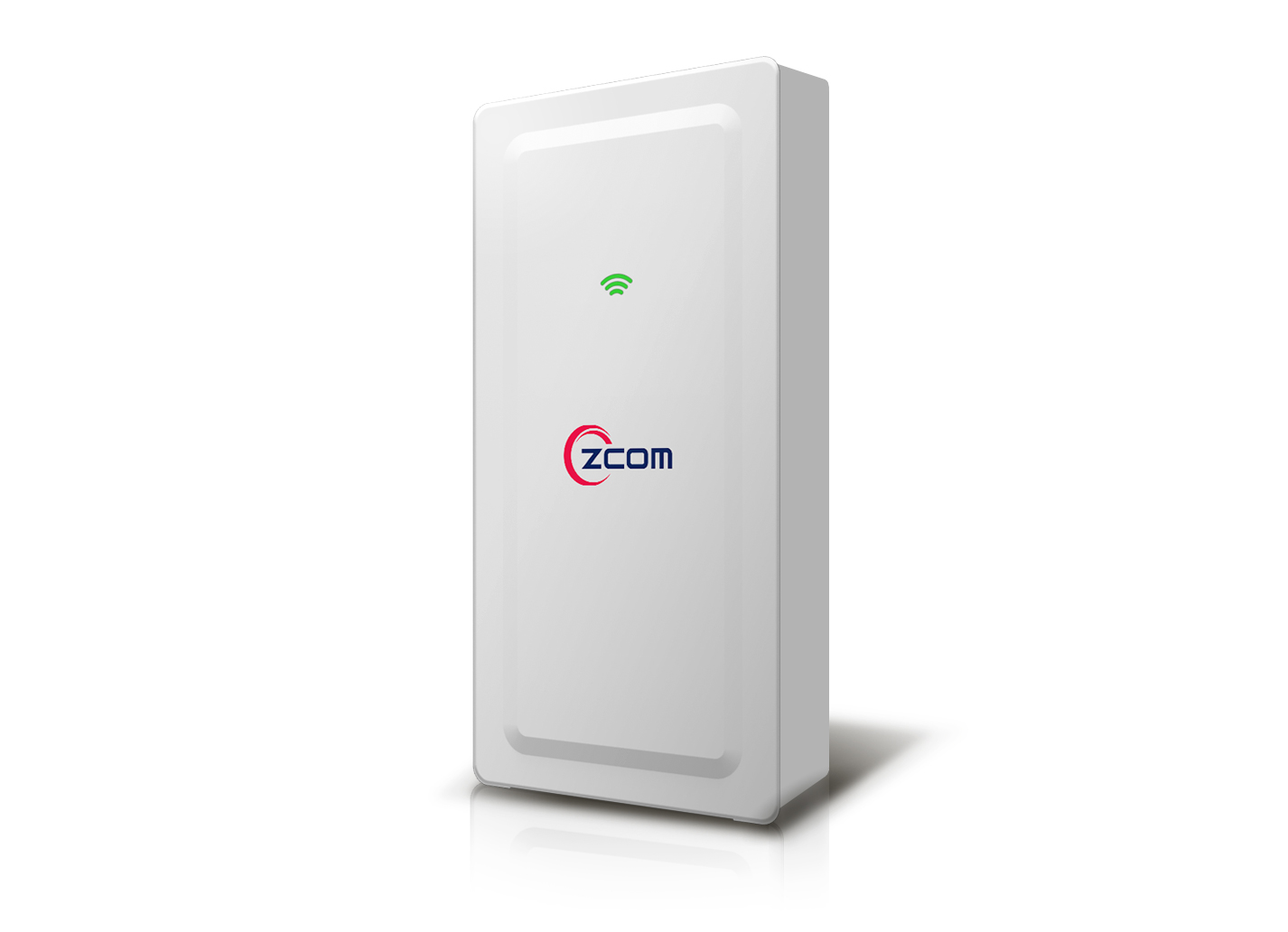

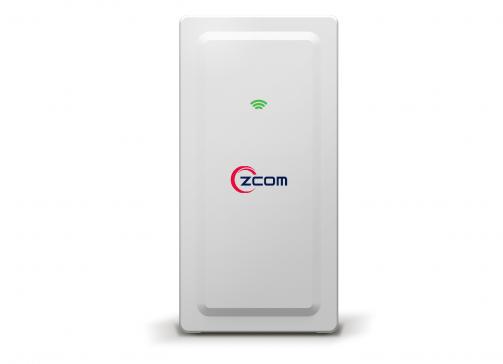

AS420
802.11ac Wave 2 4x4 Dual-Band
Supports IEEE 802.11ac Wave 2 Standard
High-density applications with MU-MIMO technology
Data rate up to 2333Mbps
Provides PoE Out
Includes BLE (Bluetooth Low Energy) location service
Supports Mesh coverage
Flexible Installation
Description
The AS420 highly integrated, indoor 802.11ac Wave 2 wireless access point delivers exceptional performance. It supports a wireless transmission rate up to 2333 Mbps and can accommodate up to 512 wireless client devices connections simultaneously.
The AS420 is equipped with a PoE out capability that enables cost-effective deployment to Smart Surveillance applications. The added benefit of the Mesh coverage and Bluetooth location services greatly improves promotion, cost, and management efficiency.
Compared to similar products in the market, the AS420 has the strongest competitiveness and is the ideal choice for Wi-Fi deployment in small-medium businesses, hotels, hospitals, and shopping malls.
 | MU-MIMO Technology Simultaneously stream data to multiple devices for high-density applications. |
 | PoE Out Supports an external device like an IP camera or a VoIP product for fast deployment and easy installation. |
 | Location Service Leverages BLE technology to provide location services capability that is easy to engage with LBS or IoT applications. |
 | Mesh Coverage Accelerates the connection speed between devices, providing users with quick installation and easy deployment capabilities. |
 | Flexible Installation Flexible installation design enables the AP to seamlessly blend into the indoor decoration. |
Specification
| IEEE 802.11a/b/g/n/ac |
| 20 / 40 / 80 / 80+80 MHz |
| Taiwan | 2.412 – 2.472GHz 5.15GHz – 5.35GHz 5.47GHz – 5.85GHz |
| US | 2.412 – 2.472GHz 5.15GHz – 5.35GHz 5.47GHz – 5.85GHz |
| EU | 2.412 – 2.472GHz 5.15GHz – 5.35GHz 5.47GHz – 5.725GHz |
| China | 2.412 – 2.472GHz 5.15GHz – 5.35GHz 5.47GHz – 5.725GHz |
| Japan | 2.412 – 2.472GHz 5.15GHz – 5.35GHz 5.47GHz – 5.725GHz |
| India | 2.412 – 2.472GHz 5.15GHz – 5.35GHz 5.725GHz – 5.85GHz 5.85GHz – 5.875GHz |
| 2.4GHz | 29dBm w/ 4 ant. |
| 5GHz | 29.3dBm w/ 4 ant. |
| Notice | *The maximum power setting will vary by channel and according to individual country regulations. |
| -100dBm |
| WS5G2 / WS7G2 /WS10G2 / WS200G2 / WS500G2 / WS1000G2 |
| Dimensions | 96 (L) × 29.9 (W) × 192 (H) mm |
| Weight | 500g |
| Mounting Type | In-wall / Wall-mount / Ceiling |
| Storage | Temperature: -20 – 70 ℃ Humidity: 10 – 90% |
| Operating | Temperature: -10 – 50 ℃ Humidity: 10 – 90% (non-condensing) |
| 802.11ac Wave 2 4 x 4 Dual Band Indoor Access Points. Mounting bracket included. Does not include power adapter. |
| 2.4GHz | 4x4:4 |
| 5GHz | 4x4:4 |
| 802.11b: 11Mbps 802.11a/g: 54Mbps 802.11n: 600Mbps 802.11ac: 1733Mbps |
| 2.4GHz | 3dBi (Embedded) |
| 5GHz | 3.3dBi (Embedded) |

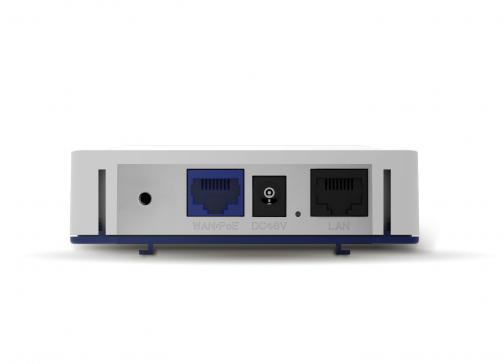

| 2 × 10/100/1000 BASE-T: 1 WAN for 802.3at PoE, 1 LAN for PoE Out (Max 10Watt, 45+/78-) 1 × Reset button 1 × Power Jack |
| Power / System / WLAN / WAN |
| Power Consumption | < 15W |
| Power Input | DC 48V, 0.5A PoE, or DC Jack (optional accessory) |
| Version | 4.1 |
| Frequency | 2400 – 2480MHz |
| Antenna | 1.5dBi (Embedded) |
| IEC/EN 60950 EN55032 & EN55024 WEEE & RoHS Radio approvals: EN 300 328, EN301 893 (Europe) EN 301 489-1 and -17 (Europe) SRRC (China) IEEE standards: IEEE 802.11a/b/g/n/ac IEEE 802.11d, e, h, i, j, k, r, u, v time stamp, w, and z standards Multimedia: Wi-Fi multimedia (WMM) Security: Open System 802.1x WPA-PSK/WPA2-PSK WPA-Enterprise/WPA2-Enterprise Extensible Authentication Protocol (EAP) types: EAP-Transport Layer Security (TLS) EAP-Tunneled TLS (TTLS) Protected EAP (PEAP) EAP-Subscriber Identity Module (SIM) *Above partial functions should be configured by Z-COM Wireless LAN Controllers (WLC) |
| AS-CLM4 | Ceiling mount + two screws |
| AS-LK18 | Anti-tamper Lock |
| AS-48052-XX | 48V 0.52A power adapter |
| SP-48063-XX | 48V PoE Injector + power cord |
| Notice | *When ordering power adaptors, you must specify the destination region by indicating -US, -EU instead of -XX. |
