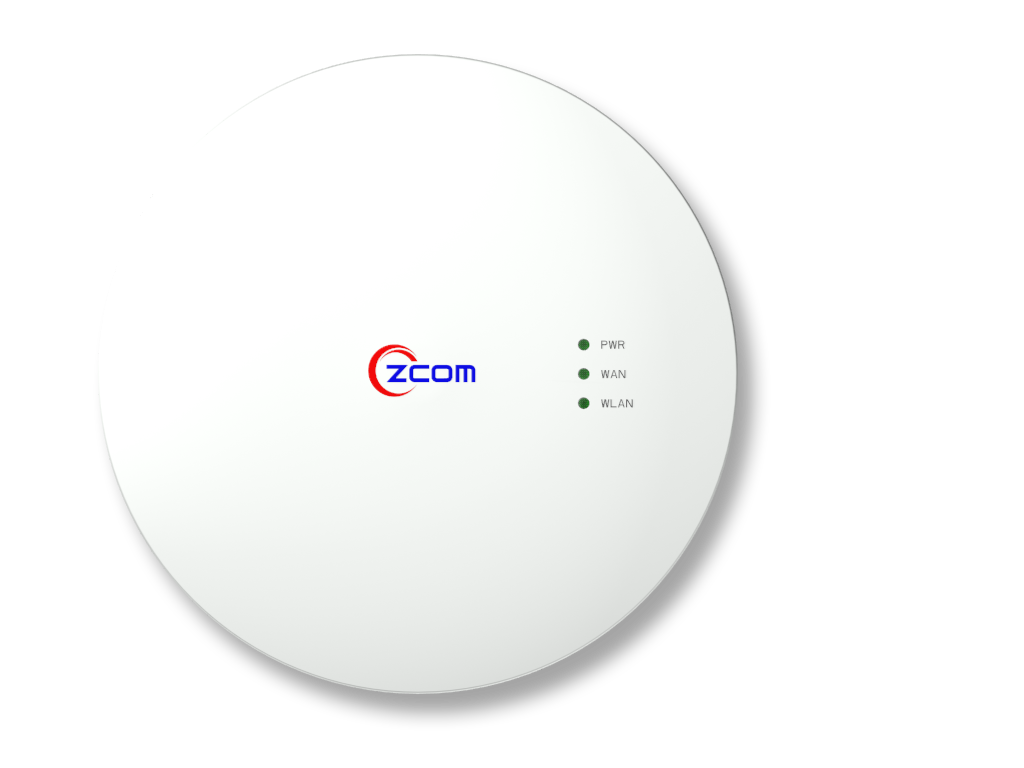

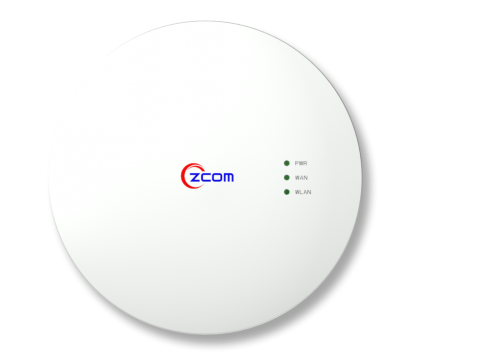

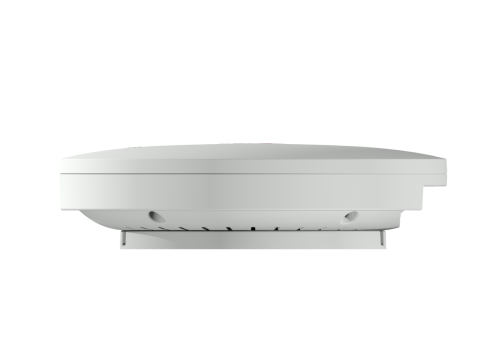

802.11ax, 2x2 Dual-Band Indoor Ceiling Access Point
Dual-band Wi-Fi 6 (802.11ax), compatible with Wi-Fi 5 (802. 11ac)
Supports up to 1,200 Mbps in 5GHz and 574 Mbps in 2.4GHz
Max. EIRP up to 20dBm in 5GHz and 20dBm in 2.4GHz

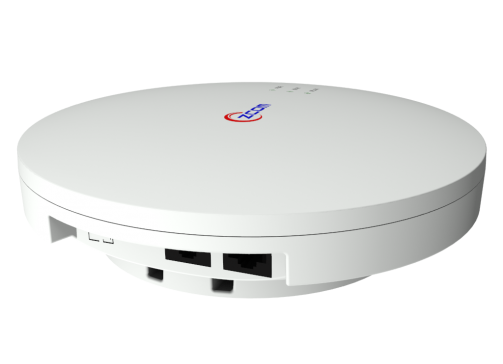

With 2 x RJ45 1G Ethernet Port
Target wake time for power-saving of clients & IoT devices
Uplink and downlink of MU-MIMO improves transmission to APs and client devices
Description
Z-COM AS240 is mainstream and value Wi-Fi 6 indoor ceiling access point, which is ideal for retail, SOHO, clinic and other indoor applications.
It is affordable, small and easy to use, but at the same time comes with a very powerful Qualcomm Chipset, capable of all the advanced configurations and serve dual-band 5GHz and 2.4GHz radio at the same time.
Overview
Ultra-Fast Wi-Fi 6 Data Rate
Simultaneous 574 Mbps on 2.4 GHz and 1200 Mbps on 5 GHz totals 1774 Mbps Wi-Fi 6 speeds.
Flexible Power Options with 1Gbps PoE + Ethernet
AS240 delivers exceptional performance to support the demand for better Wi-Fi with optimized wired performance, 1G Ethernet port. Compatibility with standard 802.3at PoE+ is ideal for flexible deployment.
Centralized Management Optional
AS240 are allowed to configure and manage multiple APs in a centralized choices include zMEC (container-based) or Wireless LAN Controller solutions.
Through Z-COM WLC that includes remote monitor, troubleshooting, and efficiency-optimized and enjoys simple management, configuration and monitoring of all access points.
With zMEC, the platform for edge computing and PaaS, manages virtualized applications and import software by any x86 servers under different applications.
Advanced Enterprise Security, WPA3
This is another level of security over the older WPA2 technology. By using 192-bit encryption key, more secure encryption of passwords and enhanced protection against brute-force attacks combine to safeguard your Wi-Fi.
Easy and Flexible Installation
The AS240 provides the necessary parts for installation and features Plug-and-play and configuration free for celling installation.
Transmit Beamforming
AS240 with beamforming design (TxBF) to improve the signal strength and achieve higher range to a single client for RF reliability.
Multiple Applications
Allows to perform multiple functions, ideal for various scenarios like campus, restaurant, offices, clinic, and commercial space.
Specification
Wireless Standards
IEEE 802.11 a/b/g/n/ac/ax |
Physical Data RatesSupported Rates
802.11ax:4 to 1200 Mbps802.11ac:6.5 to 866 Mbps 802.11n:6.5 to 300 Mbps 802.11a/g:6 to 54 Mbps 802.11b:1 to 11 Mbps |
Frequency Bands and Operating Channels
Taiwan | 2.412 – 2.462 GHz;11 channels 5.180 – 5.320 GHz;8 channels 5.500 – 5.720 GHz;12 channels 5.745 – 5.825 GHz;5 channels |
US | 2.412 – 2.462 GHz;11 channels 5.180 – 5.320 GHz;8 channels 5.500 – 5.720 GHz;12 channels 5.745 – 5.825 GHz;5 channels |
EU | 2.412 – 2.472 GHz;13 channels 5.180 – 5.320 GHz;8 channels 5.500 – 5.700 GHz;11 channels |
China | 2.412 – 2.472 GHz;13 channels 5.180 – 5.320 GHz;8 channels 5.745 – 5.825 GHz;5 channels |
Japan | 2.412 – 2.472 GHz;13 channels 5.180 – 5.320 GHz;8 channels 5.500 – 5.720 GHz;12 channels |
India | 2.412 – 2.472 GHz;13 channels 5.180 – 5.320 GHz;8 channels 5.500 – 5.720 GHz;12 channels 5.745 – 5.865 GHz;7 channels |
Notice | *Operating Channel depends on configured regulatory domain. |
RF
Antenna Type | Internal |
Antenna Gain (max) | 2.4GHz:2dBi 5GHz:2dBi |
EIRP | 2.4GHz:20dBm 5GHz:20dBm |
Frequency Bands | ISM (2.4-2.484GHz) U-NII-1 (5.15-5.25GHz) U-NII-2A (5.25-5.35GHz) U-NII-2C (5.47-5.725GHz) U-NII-3 (5.725-5.85GHz) |
PERFORMANCE TABLE
2.4GHz TX TARGET POWER (PER CHAIN) | MU HE40 MCS0 : 15dBm±2dBm MCS11 : 8dBm±2dBm MU VHT40 MCS9 : 10dBm±2dBm |
5GHz TX TARGET POWER (PER CHAIN) | MU HE40 MCS0 : 15dBm±2dBm MCS11 : 8dBm±2dBm MU VHT40 MCS9 : 10dBm±2dBm |
2.4GHz RECEIVE SENSITIVITY | HE20 MS0 : <-82dBm MS11 : <-52dBm HE40 MS0 : <-79dBm MS11 : <-49dBm |
5GHz RECEIVE SENSITIVITY | HE20 MS0 : <-82dBm MS11 : <-52dBm HE40 MS0 : <-79dBm MS11 : <-49dBm HE80 MS0 : <-76dBm MS11 : <-46dBm |
STANDARDS
Compliance Standards | IEC/EN 62368-1 EN55032 & EN55024 WEEE & RoHS IEEE standards: IEEE 802.11a/b/g/n/ac/ax IEEE 802.11d, e, h, i, j, k, r, u, v time stamp, w, and z standards Multimedia : Wi-Fi multimedia (WMM) Security : Open System 802.1x WPA-PSK/WPA-EnterpriseWPA3-PSK Extensible Authentication Protocol (EAP) types: EAP-Transport Layer Security (TLS) EAP-Tunneled TLS (TTLS) Protected EAP (PEAP) EAP-Subscriber Identity Module (SIM) *Above partial functions should be configured by Z-COM Wireless LAN Controllers (WLC) |
Radio Chains
2.4GHz | 2×2:2 |
5GHz | 2×2:2 |
BandwidthChannelization
2.4GHz | 2.4GHz:20/40 MHz |
5GHz | 20/40/80 MHz |
MIMO
MU-MIMO |
PERFORMANCE AND CAPACITY
Peak PHY Rates | 2.4 GHz:574 Mbps 5 GHz:1200 Mbps |
Client Capacity | 1024 |
INTERFACE
Ethernet | 1x 10/100/1000Mbps WAN Port 1x 10/100/1000Mbps LAN Port |
Addition | 1x Reset Button |
Power | Power Supply WAN Port:PD Input (802.3at) Consumption : ≤ 20W |
Bluetooth | Version : 5.0 Frequency : 2400 ~ 2480MHz |
Environmental | Storage Temperature:-40~ 70 ℃ Humidity:5 ~ 95% Operating Temperature:-15 ~ 45 ℃ Humidity:5 ~ 95% (non-condensing) |
MECHANICAL
Mounting Method | Ceiling |
Dimension | 175 mm × 39.1 mm |
Anti-static Grade | IEC61000-4-2(Criteria B) Air:±8kV Contact:±4kV |
Green | RoHS compliant |
LED Definition | PWR/SYS:Green Green Off:power / system off Green On:power / system on WLAN :Green Off:No WLAN connection detected Green On:WLAN connection detected Green Blinking:Sending / receiving data WAN:Green Off:No Ethernet connection detected Green On:Ethernet connection detected Green Blinking:Sending / receiving data |
Supported WLC or container-base | - WS5G2 / WS7G2 /WS10G2 / WS200G2 / WS500G2 / WS1000G2 - zMEC |
Warranty | 1 year |
