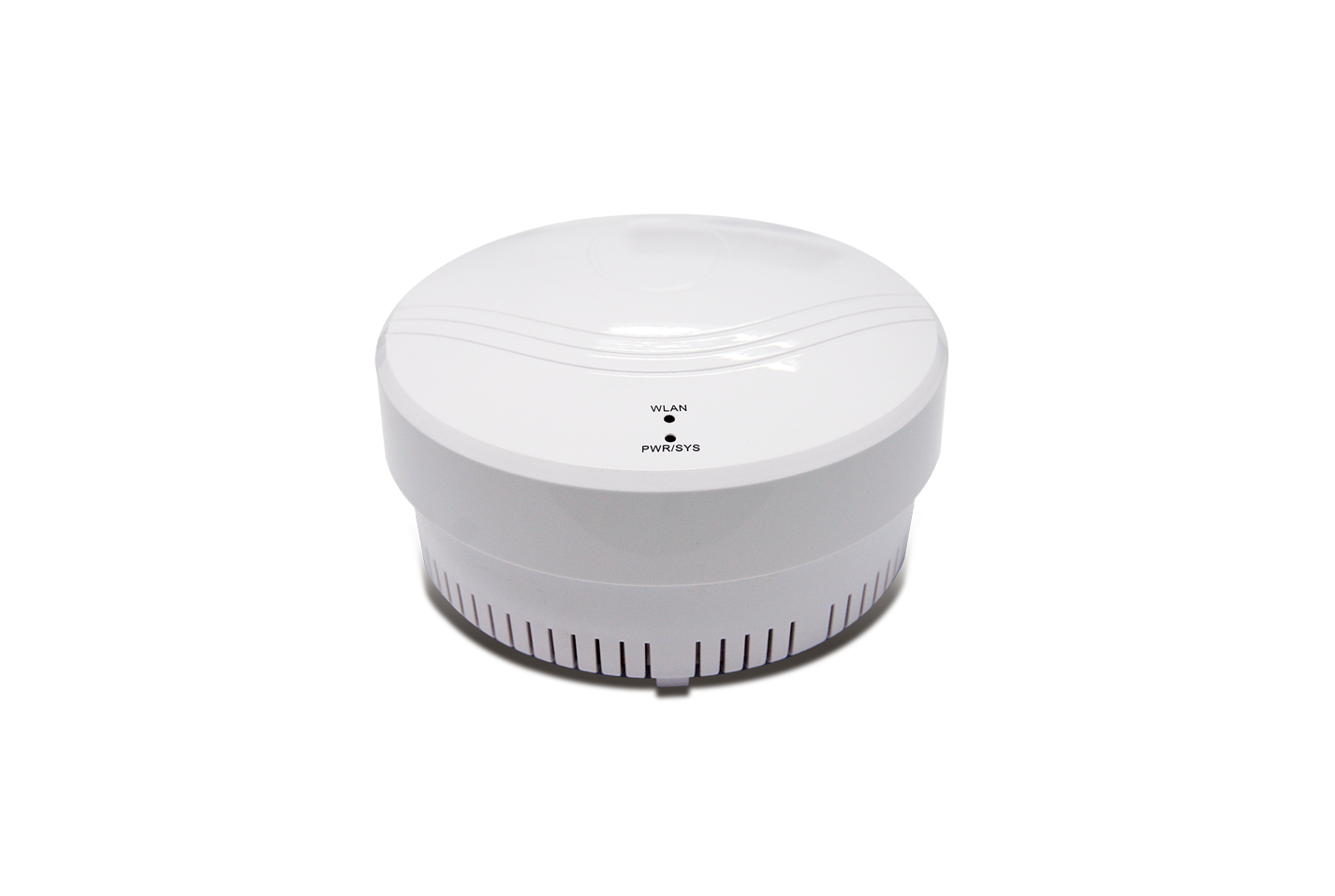

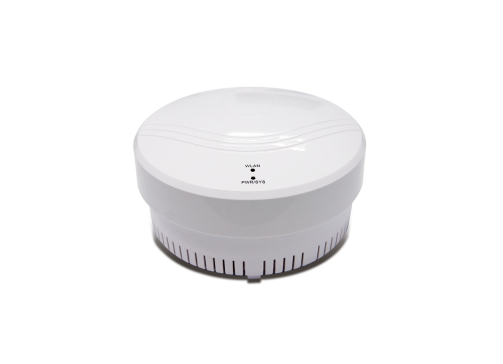

AC-1027
802.11ac 3X3 Dual-Band
Supports IEEE 802.11ac Standard
26.5 dBm high power
Ultra fast data rate up to 1750Mbps
CE Certification
Description
The AC-1027 802.11ac indoor access point offer a data rate up to 1750 Mbps. Superior RF architecture provides high-performance Wi-Fi coverage for a high-density of clients, giving end users a seamless wireless experience.
The AC-1027 can be centrally managed by remote Z-COM WLC (Wireless LAN Controller), and is the ideal choice for small to medium-sized deployments, such as offices hotels, hospitals, and shopping malls.
| Central Management The AC-1027 can be centrally managed by remote Z-COM WLC (Wireless LAN Controller). |
| Designed Appearance Designed for recessed light style, which blends into any interior design |
 | Ultra-fast Data Rate Delivers higher data rates up to 1750Mbps over a greater area with pervasive coverage than any competing access point. |
| Advanced Security Support WPA-PSK/WPA2-PSK with 802.1x Authentication. |
Specification
| IEEE 802.11a/b/g/n/ac |
| - 802.11a: 6/9/12/18/24/36/48/54 Mbps - 802.11b: 1/2/5.5/11 Mbps - 802.11g: 6/9/12/18/24/36/48/54 Mbps - 802.11n: 450Mbps - 802.11ac: 1300Mbps |
| Taiwan | 2.412 – 2.462 GHz; 11 channels 5.180 – 5.320 GHz; 8 channels 5.500 – 5.720 GHz ; 12 channels 5.745 – 5.825 GHz; 5 channels |
| US | 2.412 – 2.462 GHz; 11 channels 5.180 – 5.320 GHz; 8 channels 5.500 – 5.720 GHz ; 12 channels 5.745 – 5.825 GHz; 5 channels |
| EU | 2.412 – 2.472 GHz; 13 channels 5.180 – 5.320 GHz; 8 channels 5.500 – 5.700 GHz ; 11 channels |
| China | 2.412 – 2.472 GHz; 13 channels 5.180 – 5.320 GHz; 8 channels 5.745 – 5.825 GHz; 5 channels |
| Japan | 2.412 – 2.472 GHz; 13 channels 5.180 – 5.320 GHz; 8 channels 5.500 – 5.720 GHz; 12 channels |
| India | 5.15GHz – 5.35GHz 5.725GHz – 5.85GHz 5.85GHz – 5.875GHz |
| Notice | *Operating Channel depends on configured regulatory domain. |
| 11b: ‐88dBm / 11a/g: ‐92dBm / 11n: ‐92dBm / 11ac: -84dBm |
| 2 IEEE 802.3u MDI/MDIX 10/100 Base-T Ethernet 1 Reset button 1 Power Jack (option) |
| Power Consumption | ≤ 25W |
| Power Input | 802.3at (PoE+) |
| 2.4GHz | 3x3:3 |
| 5GHz | 3x3:3 |
| 20 / 40 / 80 MHz |
| 2.4GHz | 29.5dBm w/ 3 ant. |
| 5GHz | 29.5dBm w/ 3 ant. |
| Notice | *The maximum power setting will vary by channel and according to individual country regulations. |
| 2.4GHz | 5dBi (Embedded) |
| 5GHz | 5dBi (Embedded) |
| Power / System / WLAN / WAN |
