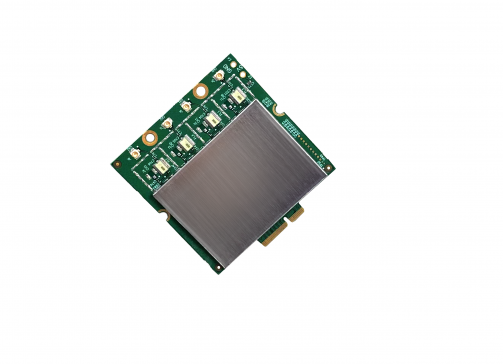

AX-930
802.11ax (4x4) PCI Express Mini Card
Support 802.11 ax 4x4 mPCIe module
Full IEEE 802.11ax legacy compatibility with enhanced performance
5180-5850GHz for worldwide market
4 antenna for Wi-Fi and Bluetooth
Mini PCI Express interface to optimize bandwidth utilization
Supports Dynamic Frequency Selection (DFS)
Description
AX930 is an 802.11ax Wi-Fi 6 PCIe radio for Enterprise Access Points and Campus deployments.
AX930 with Qualcomm® 802.11ax technology is a highly integrated wireless local area network (WLAN) system-on-chip (SoC) for 5GHz IEEE802.11ax/ac/an applications. AX930 performs AP and STA functionality with 4x4 MIMO and 4 spatial streams. The AX930 is a dual-synthesizer WLAN radio with native 160 MHz support.
Specification
| Standards | IEEE 802.11ax |
| Host Interface | PCI Express 3.0 interface, M.2 E-key |
| Operating Voltage | 3.3V/5V |
| Operating Frequency | 5G: 5.180GHz~5.850GHz |
| Modulation | 802.11n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) 802.11ac: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) 802.11ax: OFDMA (BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM) |
| Output Power | 802.11ax: Max. 23dBm (per chain) |
| Power Consumption | ≦15W |
| Receive Sensitivity | 11ax : HE20 MCS0 <-82dBm / MCS11 <-52dBm HE40 MCS0 <-79dBm / MCS11 <-49dBm HE80 MCS0 <-76dBm / MCS11 <-46dBm |
| Antenna Connector | 4x U.FL Connectors |
| Operating | Temperature: -20°C to 70°C Humidity: 95% (non-condensing) |
| Storage | Temperature: -40°C to 90°C Humidity: 90% (non-condensing) |
| Weight | 20g |
| Dimensions | 60 (L) x 57 (W) x 4.1 (H) mm (Tolerance±0.15mm) |
| RoHS/REACH Compliance |
