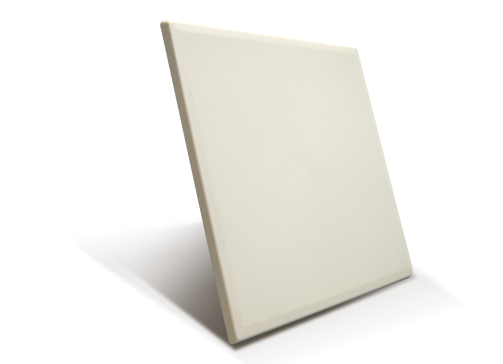

Outdoor Directional Antenna

23dBi N-type

Specification

Frequency Range

5150 - 6100 MHz

Polarization

Linear

Vertical Beamwidth

15°

Input impedance

50 Ohm

Connector

2 x N jack

Survival wind speed

216 km/hr

Weight

1.6Kg
(Include Mounting kit)

IP Rating

IP65

Gain

23±0.5 dBi

Horizontal Beamwidth

30°

Front-to-back ratio

-18dB (Max.)

Cable

2 x 150cm N-type

Power Handling

100 W (cw)

Temperature

-40°C to +60°C

Dimensions

340 x 340 x 25 mm

Mounting kit

Pole & Wall mount
