802.11ac 3X3 Dual-Band
Supports IEEE 802.11ac Standard
26.5 dBm high power
Ultra fast data rate up to 1600Mbps
CE/FCC/NCC Certification
Description

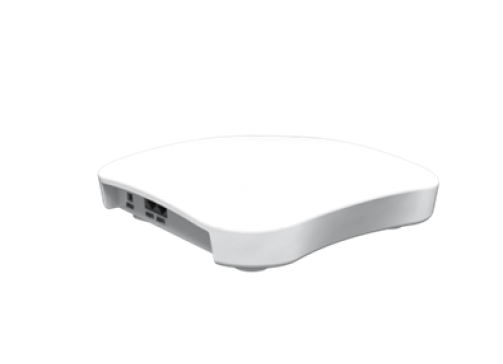

With optimized performance, functionality and reliability, AS310 sets the new standard for enterprise wireless technology to help ensure a high speed, and the best possible end-user experience on the wireless network. It supports a wireless transmission rate up to 1600 Mbps.
Performing as a stand-alone access point, AS310 can be centrally managed by Controllers for large installations.
Central Management The AS310 can be centrally managed by remote Z-COM WLC (Wireless LAN Controller). | |
Simplified power supply PoE output support powering other devices without external power supply. | |
Flexible Deployment Mode Allows not only traditional AP also in mesh networks. All deployment modes are easy to set up and configure. | |
Advanced Security Support WPA-PSK/WPA2-PSK with 802.1x Authentication. |
Specification
802.11ac |
- 802.11a: 6/9/12/18/24/36/48/54 Mbps - 802.11b: 1/2/5.5/11 Mbps - 802.11g: 6/9/12/18/24/36/48/54 Mbps - 802.11n: 300Mbps - 802.11ac: 1300Mbps |
Taiwan | 2.412 – 2.462 GHz; 11 channels 5.180 – 5.320 GHz; 8 channels 5.500 – 5.720 GHz ; 12 channels 5.745 – 5.825 GHz; 5 channels |
US | 2.412 – 2.462 GHz; 11 channels 5.180 – 5.320 GHz; 8 channels 5.500 – 5.720 GHz ; 12 channels 5.745 – 5.825 GHz; 5 channels |
EU | 2.412 – 2.472 GHz; 13 channels 5.180 – 5.320 GHz; 8 channels 5.500 – 5.700 GHz ; 11 channels |
China | 2.412 – 2.472 GHz; 13 channels 5.180 – 5.320 GHz; 8 channels 5.745 – 5.825 GHz; 5 channels |
Japan | 2.412 – 2.472 GHz; 13 channels 5.180 – 5.320 GHz; 8 channels 5.500 – 5.720 GHz; 12 channels |
India | 5.15GHz – 5.35GHz 5.725GHz – 5.85GHz 5.85GHz – 5.875GHz |
Notice | *Operating Channel depends on configured regulatory domain. |
11b: ‐89dBm / 11a/g: ‐92dBm / 11n: ‐92dBm / 11ac: -90dBm |
2 IEEE 802.3u MDI/MDIX 10/100 Base-T Ethernet 2 * 10/100/1000 BASE-T RJ-45 Ethernet connector 1 Reset button 1 Power Jack (option) |
Power Consumption | ≤ 13W |
Power Input | 802.3at (PoE+) |
Dimensions | 215.83 (L) × 215.85 (D) × 43 (H) mm |
Weight | 800g |
Mounting type | Ceiling/Wall mount |
TAP: Controller-managed mode FAP: Standalone AP mode |
CE FCC NCC |
2.4GHz | 2x2:2 |
5GHz | 3x3:3 |
20 / 40 / 80 MHz |
2.4GHz | 19dBm |
5GHz | 26.5dBm |
Notice | *The maximum power setting will vary by channel and according to individual country regulations. |
2.4GHz | 5dBi (Internal) |
5GHz | 5dBi (Internal) |
Power / System / WLAN / WAN |
IP43 |
Storage | Temperature: -10 – 60 ℃ Humidity: 10 – 90% |
Operating | Temperature: 0 – 55 ℃ Humidity: 10– 90% (non-condensing) |
Web User Interface Telnet SSH SNMP |
